FloPath TRI-T

FloPath TRI-T

TWO DATA LOGGERS IN ONE! CAPTURE PRESSURE AVERAGE AND SURGE DATA IN SEPARATE FILES — WATERPROOF AND SUBMERSIBLE WITH LONG-LIFE BATTERY POWER AND UNIQUE FEATURES THAT FIELD TECHNICIANS DEMAND.

The TRI-T range of data loggers use a new data logging architecture that allows the user to monitor pressure input in terms of average values based on typical logging rates plus minimum/ maximum values based on fast sampling rates down to 10 samples/second. TRI-T transient logger can also detect and log pressure surge data up to 1000 readings per second without interfering with the main recordings.

During threshold logging, the logger checks the pressure signal against the threshold settings 10 times per second and once triggered starts logging data at one of the configured log rate of 10Hz, 20Hz, 100Hz or 1KHz.

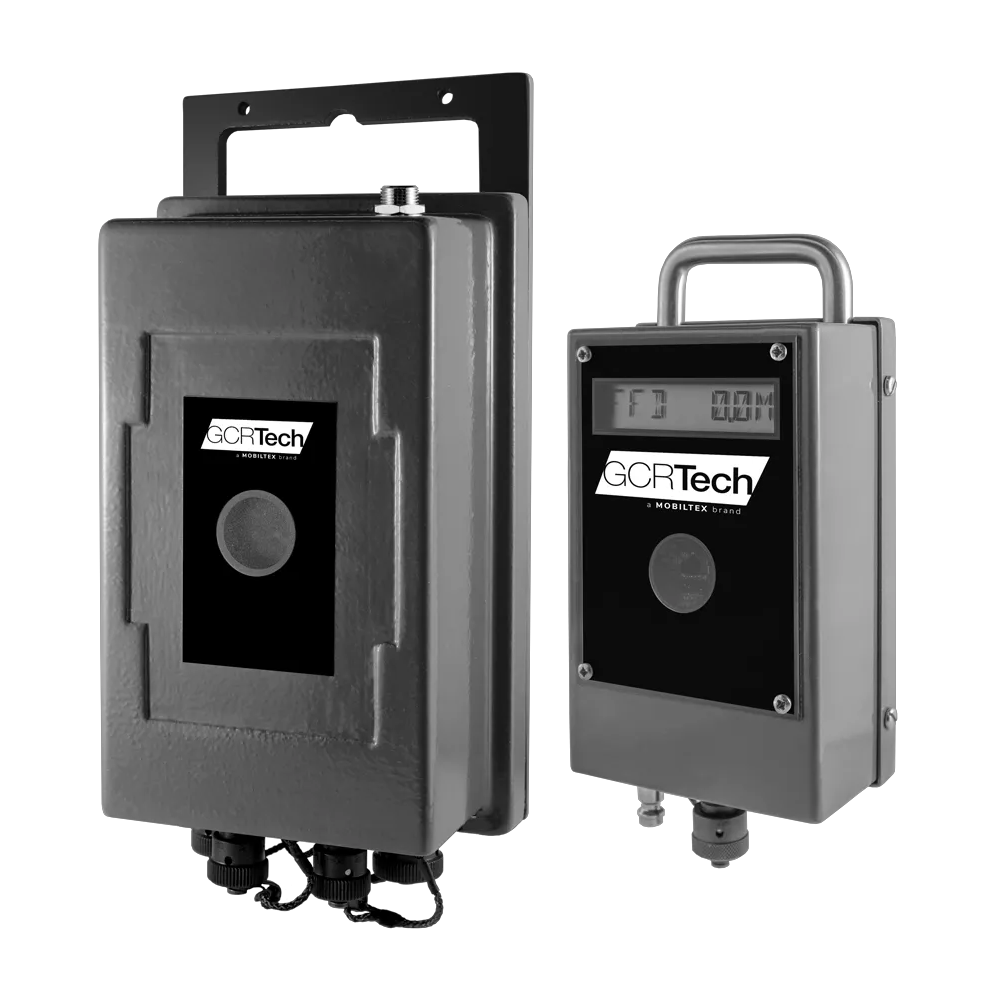

Pressure surges are logged and surge data plus the slow logged data is sent via cellular communication for the GTRI-T model or downloaded manually using the USB to IrDA communications cable for the portable display model TRID-T.

If external power is connected the logger can sample pressure at 1KHz continuously, detect and record data at 10Hz, 20Hz, 100Hz or 1KHz before during and after the surge event.

FLOPATH TRI-T APPLICATIONS:

WATER HAMMER
PRESSURE MONITORING IN NETWORK
HYDRAULIC NETWORK ANALYSIS
MONITOR PRESSURE RELIEF VALVES
MONITOR PUMPS
PIPE FAILURE INVESTIGATIONS
PIPE CONDITION ASSESSMENT SURVEYS
