Product Overview

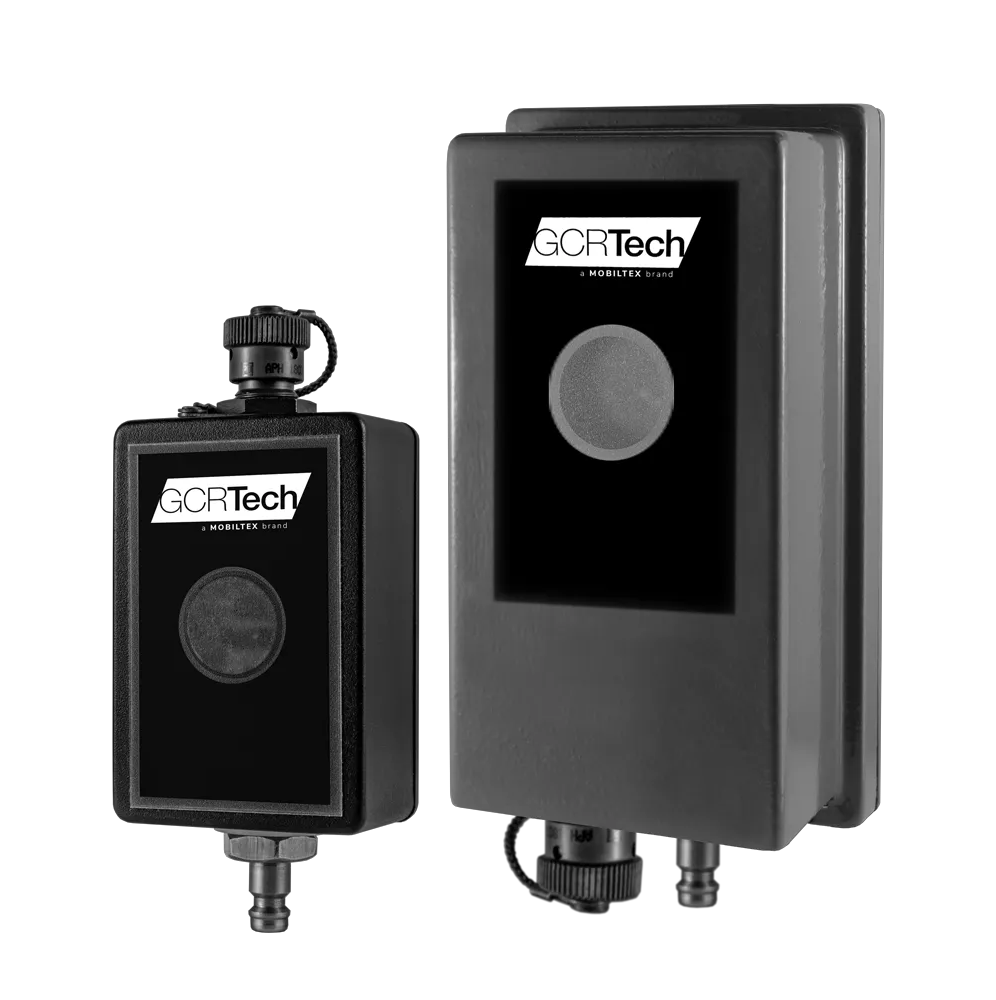

FloPath PTRI / TRI
ROBUST AND COST EFFECTIVE DATA LOGGER ENGINEERED TO LAST — WATERPROOF AND SUBMERSIBLE WITH LONG-LIFE BATTERY POWER.
The PTRI/TRI range of data loggers use a new data logging architecture that allows the user to monitor pressure/flow inputs in a multitude o f configurations providing ultimate flexibility to meet specific application requirements.
The FloPath PTRI/TRI stores data in non-volatile memory organized into data files. Each data file is an independent data logger with its own start/stop time, sample rate, and logging rate. More than one data file can record different types of data for the same input channel.
Different types of data include Average, Instantaneous, Minimum, Maximum, etc. The memory register size is designed to be ready to accommodate overflows associated with high pulse rates on Flow inputs.
Pressure measurement accuracy is optimized using multi-point calibration. Logged data can be re-calibrated before, during, or after the recording by recalibrating the pressure transducer to the logger.
Local communications via fast non-contact IrDA communications link (115,200 baud). The logger firmware can also be upgraded in the field via the IrDA communications link.
FLOPATH PTRI/TRI APPLICATIONS:
LEAKAGE FLOW-MONITORING
FIRE FLOW TESTING / C-FACTOR TESTING
PRESSURE/PRV MONITORING
HYDRAULIC NETWORK ANALYSIS
PRESSURE SURGE DETECTION
RAINFALL MONITORING
PUMP ON/OFF TIMES
MINIMUM NIGHT FLOW ANALYSIS
LOW-PRESSURE INVESTIGATIONS
