Professional Sludge Dewatering Machine [Medium Capacity]

Professional Sludge Dewatering Machine [Medium Capacity]

High Efficiency Dewatering Press for Medium-Sized Operations

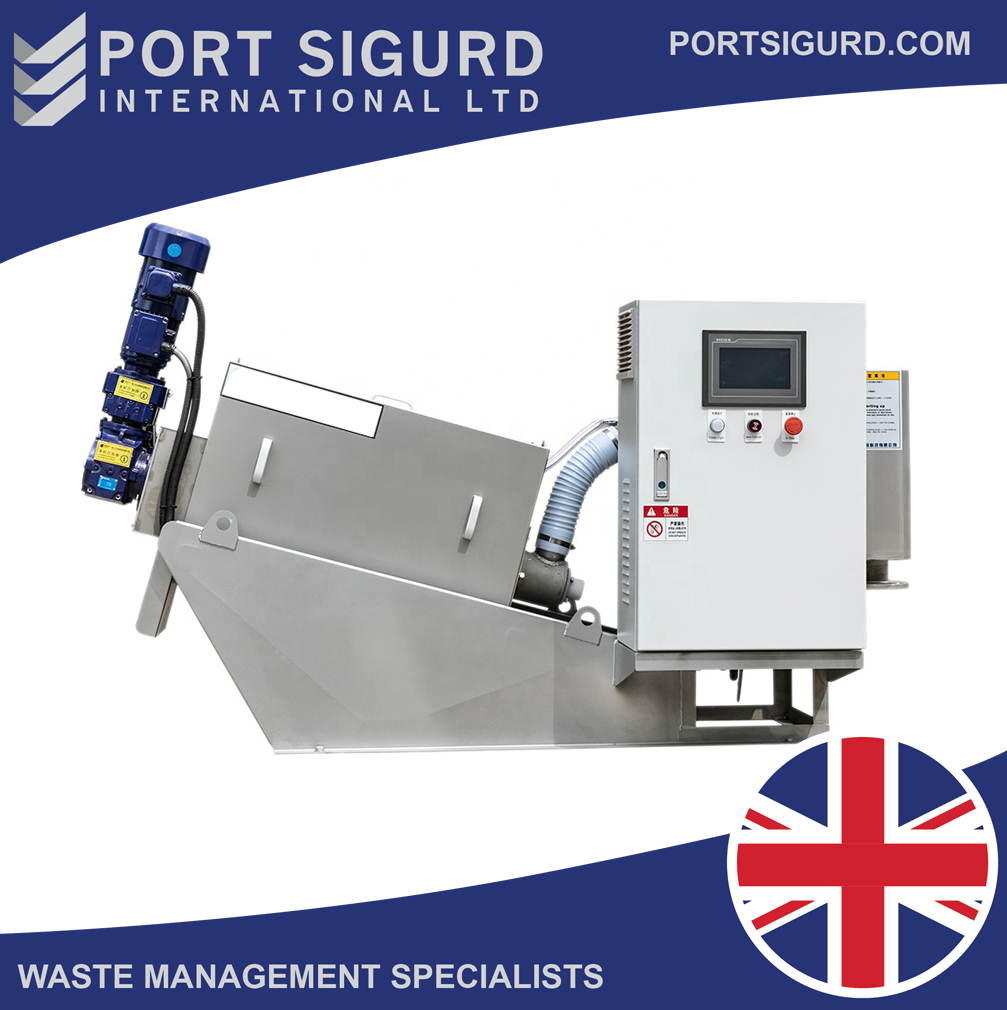

Professional waste water treatment for hospitals, plants, recycling plants and more. The machine uses a screw extrusion as its main driving mechanism to process sewage and sludge water. This solid-liquid separation device reaches new heights in terms of waste water treatment, and by changing the screw diameter and distance, even greater separation can be achieved.


WORKING PRINCIPLE:

The main mechanism of the Sludge Dewatering Press is made up of multiple fixed & movable annular plates with the screw shaft running through them. The front of the machine is where the thickening compartment is located and at the very end is where the dewatering compartment is located. The machine both thickens and dewaters sludge in one process, which means it has replaced traditional filtering screens as well as centrifugal filtration methods.


DEWATERING PRINCIPLE:

After having been thickened up in the thickening compartment, the sludge is transported to the dewatering compartment. During this process, high pressure is produced because the gradual decrease in filter space and screw distance cause the back plate to be clogged. As the volume decreases, the effect of dewatering is achieved.


DRY SLUDGE TREATMENT CAPACITY (50 ~ 70 kg/L):

10000 mg/L: ~5m³/h
20000 mg/L: ~2.5m³/h
30000 mg/L: ~2m³/h
40000 mg/L: ~1.5m³
50000 mg/L: ~1.4m³


We ship worldwide, get in touch now for your quote!
