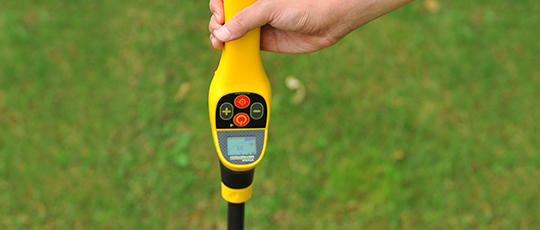

VM-550 Service Drop Locator
Available from Vivax-Metrotech Corporation
The VM-550 is a general-purpose locator used to detect buried pipe and cable services in a variety of situations. With a 50/60Hz passive power locating frequency and three active frequencies, the VM-550 locators will meet the requirements of those wishing to detect the presence of active power cables and to trace short ranges. The VM-550 transmitter also has the additional frequency of 8kHz Fault-find so it can be used to detect the presence of ground to sheath faults on cable when used with the VM-510 Stand Alone A-Frame fault locator.
The 1-Watt Transmitter applies a locate frequency by direct connection or induction. Optional Induction Clamps can be used to clamp around a line and induce the locate signal onto it.
VM-550 Utility Locator frequencies: 50/60Hz, 512/640Hz, 8.19kHz, 83.1kHz and 8kHz FF
