AXB Inline Axial Fan

AXB Inline Axial Fan

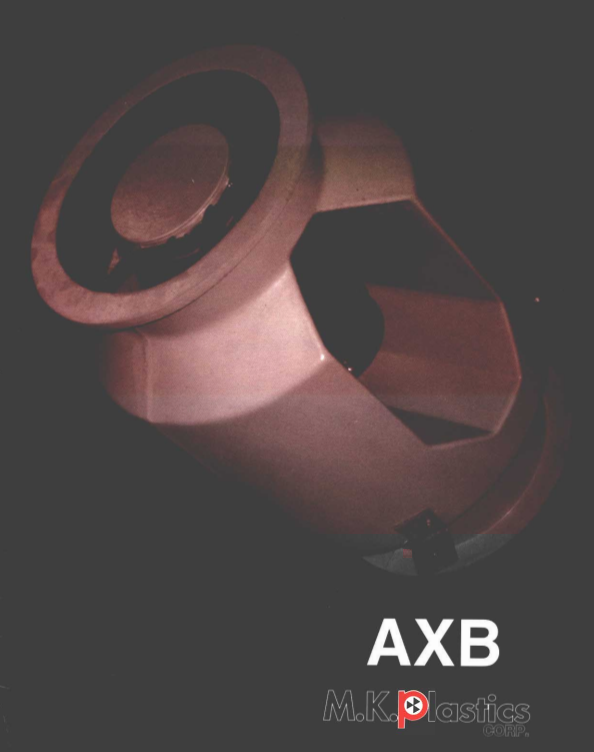

AXB Overview
- Glass fiber reinforced plastic (GRP) axial fan, manufactured from high-quality corrosion-resistant resins and glass fiber reinforcements capable of withstanding temperatures up to 210°F.
- Bifurcated axial helix design for vertical or in-line blowing applications.
- Turbine made of GRP or corrosion-resistant polypropylene
- For high-volume, low-SP online applications
- UV inhibitors are added to the resins and they are flame retardant of class 1 out of 25 or less.
- The bifurcation facilitates access to belts, pulleys, bearings and shafts, which are not exposed to the corrosive airflow.
- The fans can be installed in any position.

AXB design features
- Propeller made of GRP or polypropylene selected from a wide range of pitch angles and number of blades for a specific application.
- The fan motor brackets are made of epoxy-coated structural steel or encapsulated in fiberglass. These brackets are adjustable for belt tension.
- Belt drive applications with fan shaft, fan bearings and V-belt drive away from corrosive airflow.
- Direct drive engines are out of the airflow.
- The motors are available in TEFC, explosion-proof or industrial and chemical application versions.
