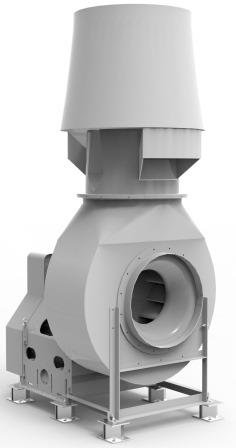

Axijet High Plume Dilution Fan

Axijet High Plume Dilution Fan

The Axijet® High Plume Dilution Fan is used to extract laboratory, process, or fume hood effluent air and dilute the effluent with outside ambient air. Because of the nozzle design, the diluted effluent is displaced high into the atmosphere at a constant high discharge velocity. As a result, the Axijet has greater exhaust dilution, higher discharge velocity, greater exhaust mass, and a greater plume height than conventional blowers and fans. The Axijet is AMCA certified for both Air & Sound.

Axijet Design Features
- Axijet Sizes and PerformancesBackward inclined, airfoil non-overloading wheel.
- High efficiency.
- Low radiated sound levels.
- Greater airflow and high pressure capabilities, with stable operation throughout the operating curve.
- Motor and drive components do not require access to the contaminated airstream.
- Available in sizes from 1225 to 7300 (12” to 73”), with capacities from 1,200 to 95,000 CFM and up to 10” S.P.

We provide AxiJet® High Plume Dilution Fans engineered to help your facility safely disperse and dilute exhaust contaminants while improving overall air quality and environmental performance. Our systems are designed to support your laboratory, healthcare, industrial, and commercial applications that require enhanced exhaust plume management and regulatory compliance. We work closely with your engineering and facility teams to deliver high-performance ventilation solutions that maximize dilution efficiency and reduce the risk of exhaust re-entrainment. Our expertise in specialized air handling technologies helps your organization achieve safer operations, improved system effectiveness, and long-term reliability. We are committed to providing innovative high plume dilution fan solutions that support your safety, sustainability, and operational goals.
