Depth & Level Transmitter - VL3000

Available from PMC-STS, Inc.

Product Details

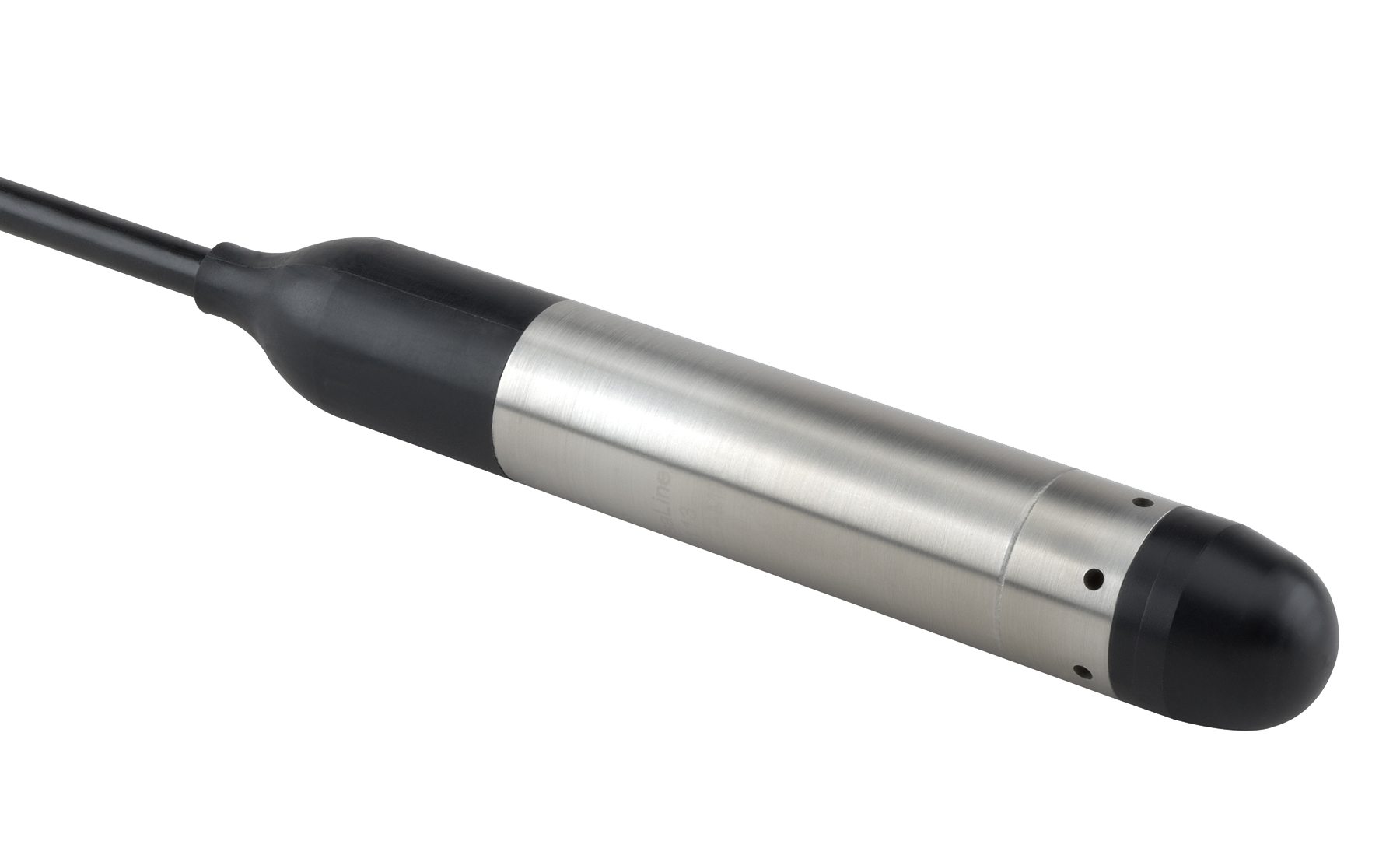

Depth & Level Transmitter - VL3000 (Click to enlarge image)
The PMC VersaLine® VL3000 Series submersible transmitters are specifically designed for depth and level measurements of groundwater, wastewater and sea water. Typical applications would be in rivers, wells, dams, irrigation, sewage lift stations and oceanography. The stainless steel construction will satisfy many applications and the titanium housing is ideal in brackish or sea water or other chemical environments unsuitable for stainless steel. The standard polyurethane vented cable is molded to the transmitter providing the highest integrity waterproof assembly well proven in thousands of installations worldwide. Kevlar is used to avoid any cable elongation when longer lengths up to 5000 feet are required for deep wells. FEP cable is available as an alternate for harsh environments. A feature of the VL3000 Series is full scale ranges as low as 10”WC.

Ranges: Full Scale (Zero based)
0-10, 20, 30, 50” WC
0-1, 5, 10, 15, 30, 50, 100, 150, 200, 300 psig
0-50, 100, 150, 200, 300 psia
Other ranges and pressure units can be specified.
0.1% & 0.25% accuracy
All welded 316L SS or Titanium
4-20 mA, 2 wire output
Molded polyurethane cable
