STD Series Digital Pressure Transmitters with Display

STD Series Digital Pressure Transmitters with Display

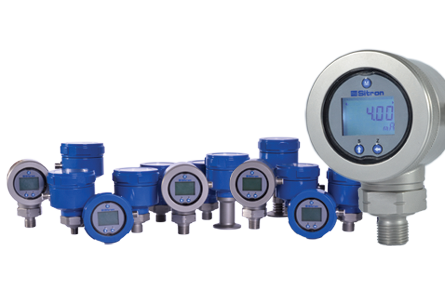

The STD Series of digital pressure transmitters are designed for pressure measurement for liquids and gases across a wide range of industrial processes. Each model features a rotatable 5 digit LCD display that permits the user to visualize the variation of either the level or the pressure of the process by value, percentage or a real time graph. The STD series provides a 4…20mA analog signal with superimposed HART communications protocol, programmable Zero/Span adjustment, decimal point, damping and display mode parameters via three programmable buttons.

Features include:

The STD81 features a 5 digit rotatable LCD display, all 316SS Housing and body (or Aluminum Housing and 316SS body), piezoresistive ceramic sensing diaphragm, pressure ranges from 0…1bar to 0…600bar and HART communication protocol;

The STD96 features a 5 digit rotatable LCD display, all 316SS Housing and body (or Aluminum Housing and 316SS body), 316SS silicone filled sensing diaphragm and pressure ranges from 0…300bar and HART communication protocol;

The STD98 features a 5 digit rotatable LCD display, all 316SS Housing and body (or Aluminum Housing and 316SS body), capacitive ceramic sensing diaphragm, pressure ranges from 0…1bar to 0…600bar and HART communication protocol;
