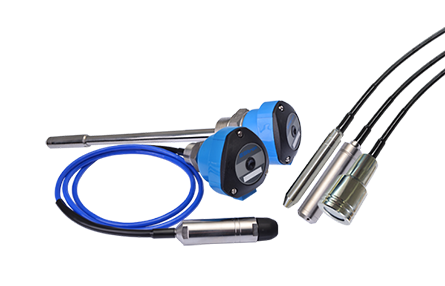

LH Series Hydrostatic Pressure and Level Transmitters

LH Series Hydrostatic Pressure and Level Transmitters

The LH Series of Hydrostatic pressure and level transmitters are designed for pressure measurement for liquids across a wide range of industrial processes. Each model provides excellent stability, repeatability and accuracy, with both temperature and atmospheric compensation. Output options include 4-20mA, 1-5volts, 1-10volts and HART communication protocol.

Features inlcude:

The LH840 features a 316SS piezoresistive sensor, 316SS body, a polypropylene vented cable and pressure ranges from 0…1 bar to 600bar;

The LH840S features a 316SS piezoresistive sensor, with 5/8” diameter narrow 316SS body, a polypropylene vented cable and pressure ranges from 0..1bar to 600bar;

The LH850 features a 316SS piezoresistive sensor, 316SS body, a polypropylene vented cable and pressure ranges from 0…1 bar to 600bar;

The LH860 features a thin filmed piezoresistive ceramic sensor, a 316SS or PVC body, a polypropylene vented cable and pressure ranges from 0…1 bar to 600bar;

The LH840C features a thick film capacitive ceramic sensor, 316SS or all PVC body, pressure ranges from 0…300bar and optional HART protocol;

The LH842 features a Zero and Span adjustment, 316SS piezoresistive silicon sensor, 316SS body, pressure ranges from 0…300bar and optional HART protocol;

The LH842C features a Zero and Span adjustment, thick film capacitive ceramic sensor, 316SS or all PVC body, pressure ranges from 0…300bar and optional HART protocol.
