DOCS® 1500 VSA Oxygen Generation System
Available from PCI Gases
•Oxygen Capacity: 1500 lpm | 6,400 lbs/day | 2,905 kg/day
•02 purity @ discharge flow rate: 93% +/- 3%
•02 output pressure w/ compressor: 20 - 100 psig | 1.4 – 6.9 barg
•02 output pressure w/out compressor: 7 - 10 psig | 0.48-0.69 barg
•Operating temperature: 0°F to 120°F | -18°C to 49°C
•Operating power: 460/380 VAC, 3-phase, 60/50 Hz
•Power consumption: 43 kW @ 7 psig | 51 kW @ 55 psig

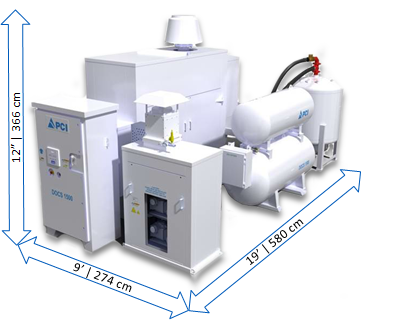

•Base dimensions: 19’L x 9’W x 12’H | 580 cm x 274 cm x 366 cm
