DOCS® 5000 VSA Oxygen Generation System
Available from PCI Gases
•Oxygen Capacity: 5000 lpm | 21,000 lbs per day | 9,534 kg per day
•Oxygen Purity: 93% +/- 3%
•Oxygen Pressure W/Compressor: 20 - 60 psig | 1.4 – 6.9 barg
•W/Out Compressor: 7 - 10 psig | 0.48-0.69 barg
•Operating Temperature:0°F to 120°F | -18°C to 49°C
•Power Input: 460/380 VAC, 3-phase, 60/50 Hz
•Power Consumption: 135-145 kW @ 7 psig | 160-170 kW @ 55 psig

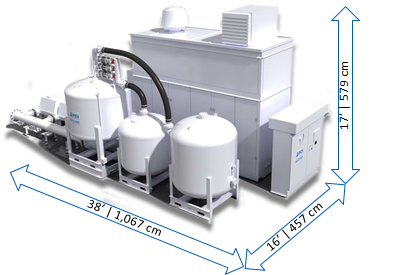

•Base Dimensions: 38’L x 16’W x 17’H | 1067 cm x 457 cm x 579 cm
