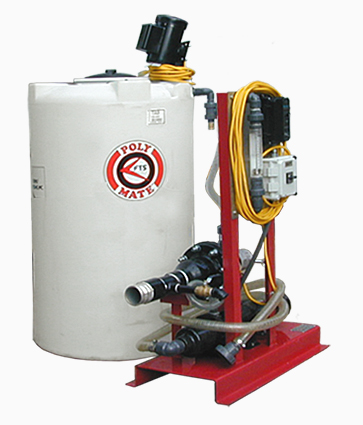

Poly-Mate® Polymer Mixing and Injection System
Available from Flo Trend Systems
The Poly-Mate® Polymer Mixing and Injection System dewaters sludge faster and with more clarity. The Poly-Mate® allows for the addition of liquid or dry polymer that conditions the incoming sludge. Sludge can be pumped into the Sludge Mate's® inlet manifold through the mixing manifold on the Poly-Mate® system. The Poly-Mate® is available in a variety of models to suit your needs.
250 - Tank with agitator separated from injection pump skid - for low sludge flows (up to 100 gpm).
500 - Tank with agitator separated from injection pump skid for ease of placement in tight locations. For sludge flows above 100 gpm.
1000 - All components are skid mounted, including batch tank and agitator.
2000 - All components are skid mounted including two batch tanks. This model allows for the continuous delivery of dilute polymer.
3000 - Skid mounted unit with dual tanks, transfer pump, level controls, and neat polymer pump for the automatic continuous mixing and injection of liquid polymer.
4000 - Designed for use with dry polymer this skid-mounted model includes a single agitated batch tank, Jet Shear® II, hopper, eductor and recirculation pump. Dry polymer is manually added through a mixing hopper.
5000 - This two tank skid mounted unit with Jet Shear® II, hopper, eductor, and recirculation pump allows for the continuous mixing and injection of dry polymer. The polymer is manually added through a mixing hopper.
