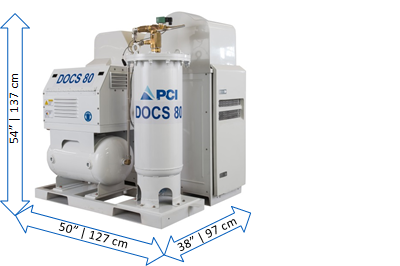

DOCS® 80 VSA Oxygen Generation System

Available from PCI Gases

•Oxygen Capacity: 80 lpm |340 lbs per day | 153 kg per day

•02 purity: 93% +/- 3%

•02 output pressure: 20 - 100 psig | 1.4 – 6.9 barg

•Operating temperature: 0°F to 120°F | -18°C – 49°C

•Operating power: 208/220 VAC, 3-phase, 60/50 Hz

•Power consumption: 4.2 kW @ 55 psig | 4.5 kW @ 100 psig

•Base dimensions: 50”L x 38”W x 54”H | 127cm x 97cm x 137cm
